Modder Board For Ender 3 S1

This model is for the Ender 3 S1. It is not compatible with the Ender 3 V3, SE, or KE.

Update (November 2024): I will be taking a break for the holidays and will not be shipping orders until the new year (January 1, 2025). Thank you for your patience, if you can't wait for Jan 1st when I will resume shipping, you can cancel your order, just send me a message with your order number and I will get you a refund ASAP.

I have boards in inventory ready to ship, but I have set it to a "pre-order" to help indicate that I will not be shipping orders until Jan 1st.

For international orders, recipient will be responsible for paying any import taxes, duties, and fees at time of receipt.

The board does not come with any cables or connectors, but they can be purchased separately.

Features:

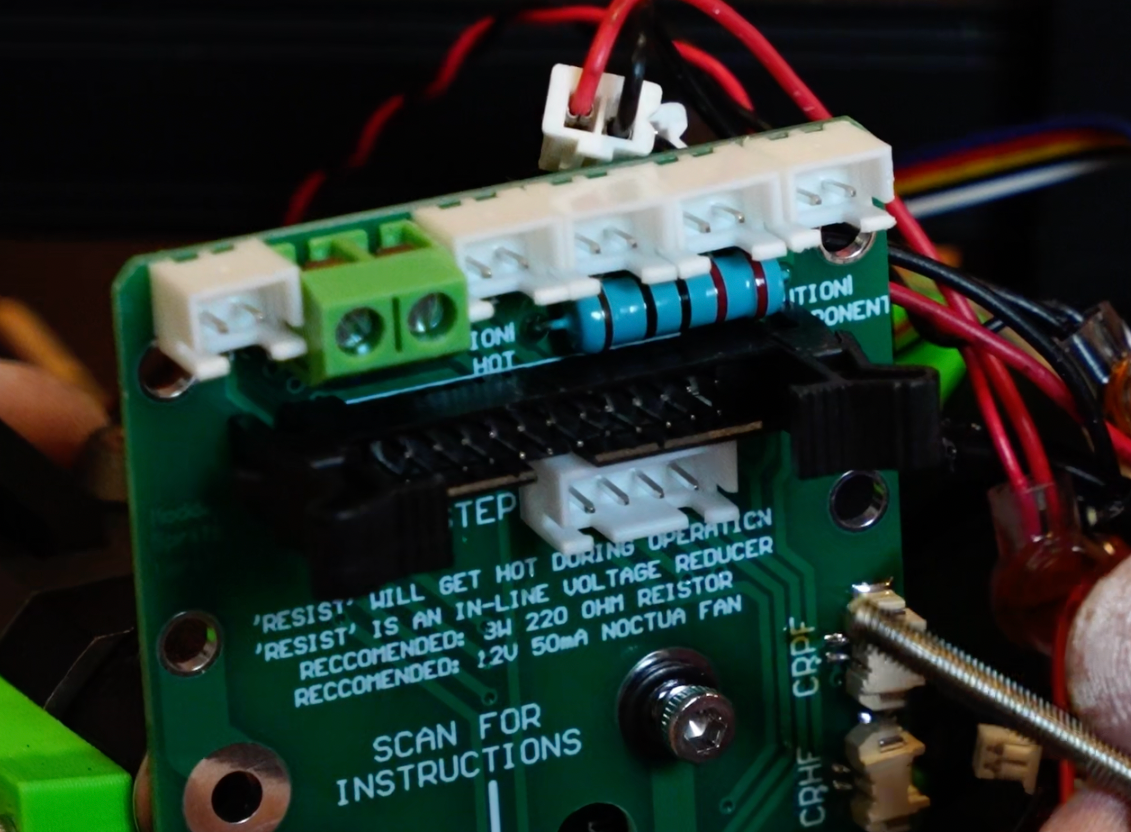

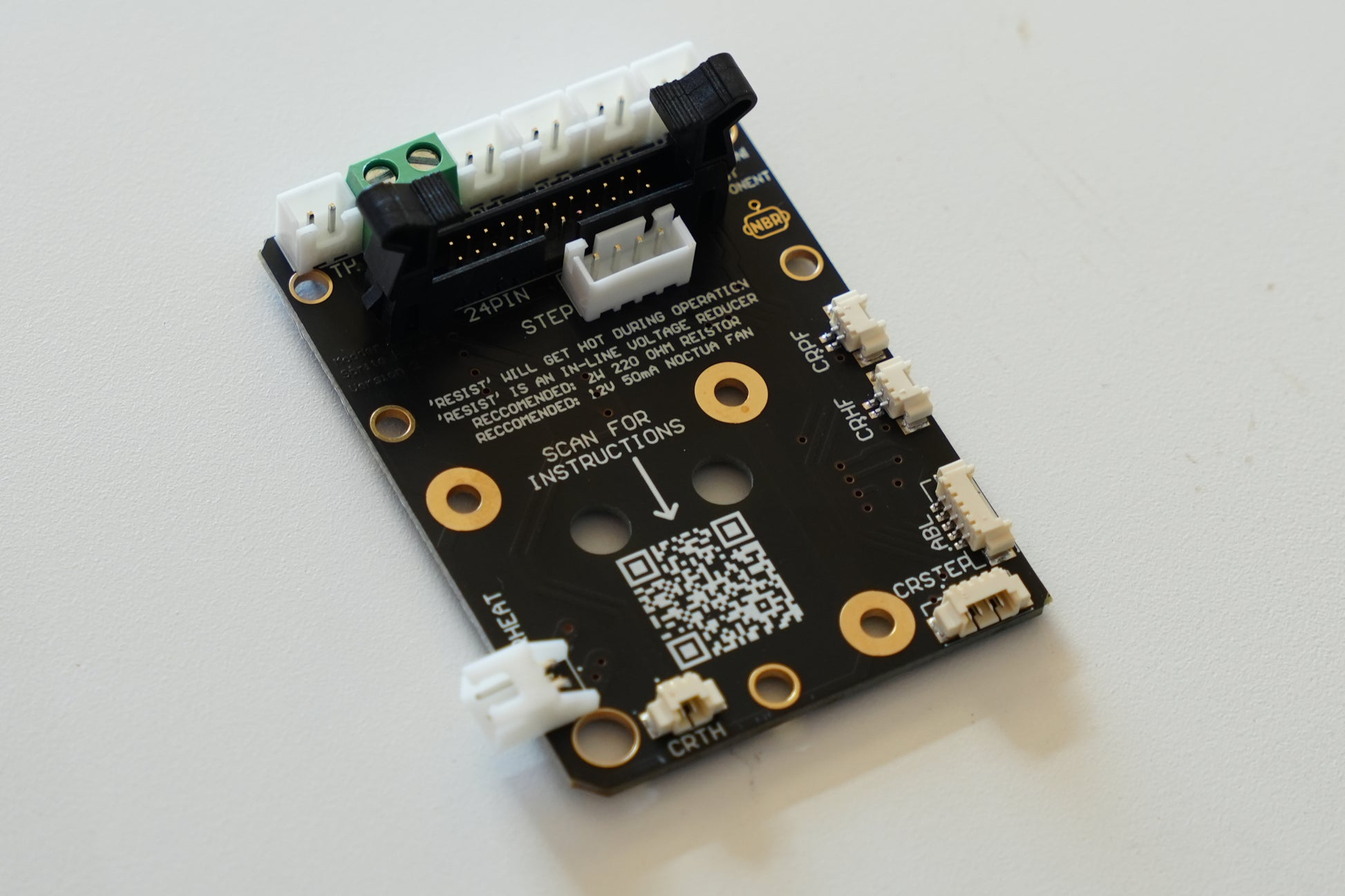

• Addition of JST-XH Connectors makes upgrading your printer easier than ever. Just plug and play!

• Traces are wider, and connectors are larger and more robust.

• Black and Gold Color Scheme

• Made in China, Quality Tested in the US before shipping.

• Backwards compatible with the Ender 3 S1 Sprite Hotend.

Recommended Upgrade:

Replace Hotend Heatsink fan and Part cooling fan with quieter and more powerful alternatives.

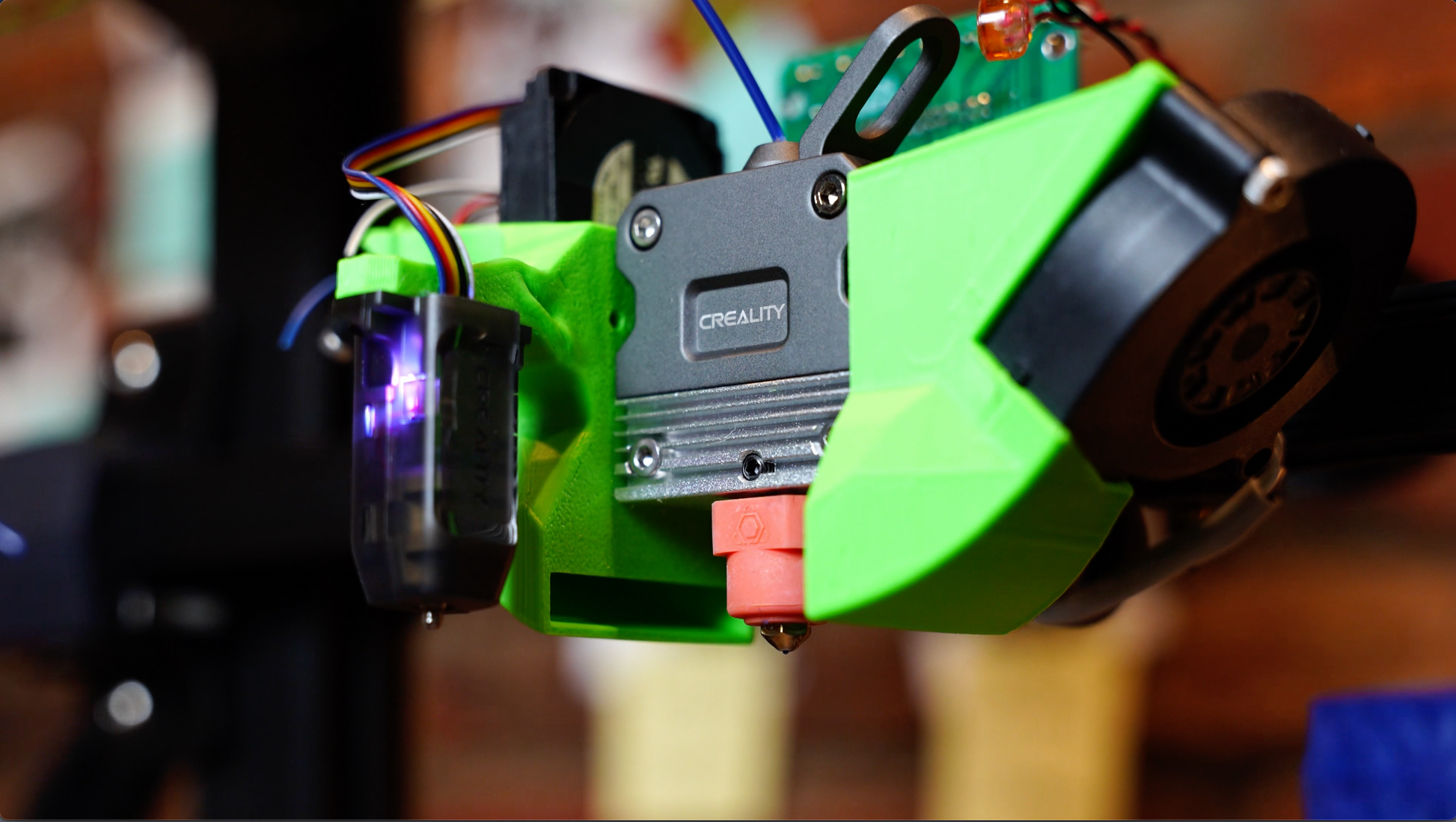

3D Printable Files:

Basic Duct - Fan Ducts
Advanced Duct - The Air Shank

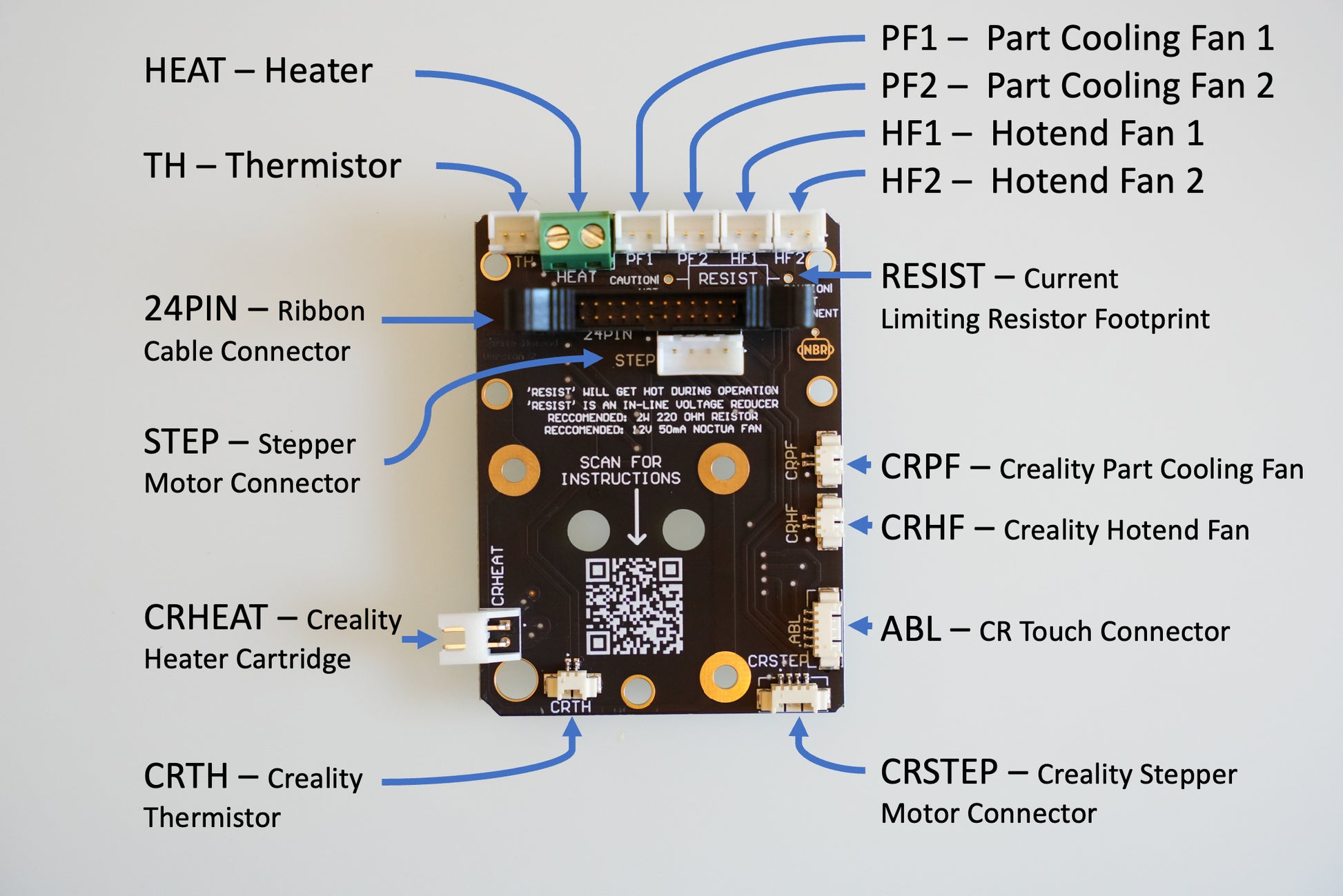

Connectors:

Main Connector: 24-pin Latching Connector

Heater Cartridge: 1 JST-XH 2.54, 1 Screw Terminal

Thermistor Connector: 1 Picoblade, 1 JST-XH 2.54

Hotend Heatsink Fan: 1 Picoblade, 1 JST-XH 2.54, 1 JST-XH 2.54 with footprint for series resistor (End-user must solder this item in place)

Part Cooling Fan: 1 Picoblade, 2 JST-XH 2.54

CR-Touch: 1 Picoblade (5-pin)

Extruder Stepper Motor: 1 Picoblade (4 pin), 1 JST-XH 2.54 (4-pin)

Compatible with the following printers that use the Sprite or Sprite Pro Hotend (Affiliate links):

• Ender 3 S1

• Ender 3 S1 Pro

• Ender 3 S1 Plus

• Sprite Pro Upgrade Kit


• Ender 5 S1 (Requires rewiring of the Thermistor and Part Cooling Fan. A Solder-Free Connector Kit is recommended for Ender 5 S1 Installations)


• CR-M4


• CR-10 Smart Pro

More Info and Installation Guide: https://www.nathanbuildsrobots.com/projects/breakout

This product is not endorsed or affiliated with Creality (Thank God)

Pictures are for reference only. Final appearance is subject to change.
